Metal Structured Packing: The Benchmark for High-Efficiency Separation

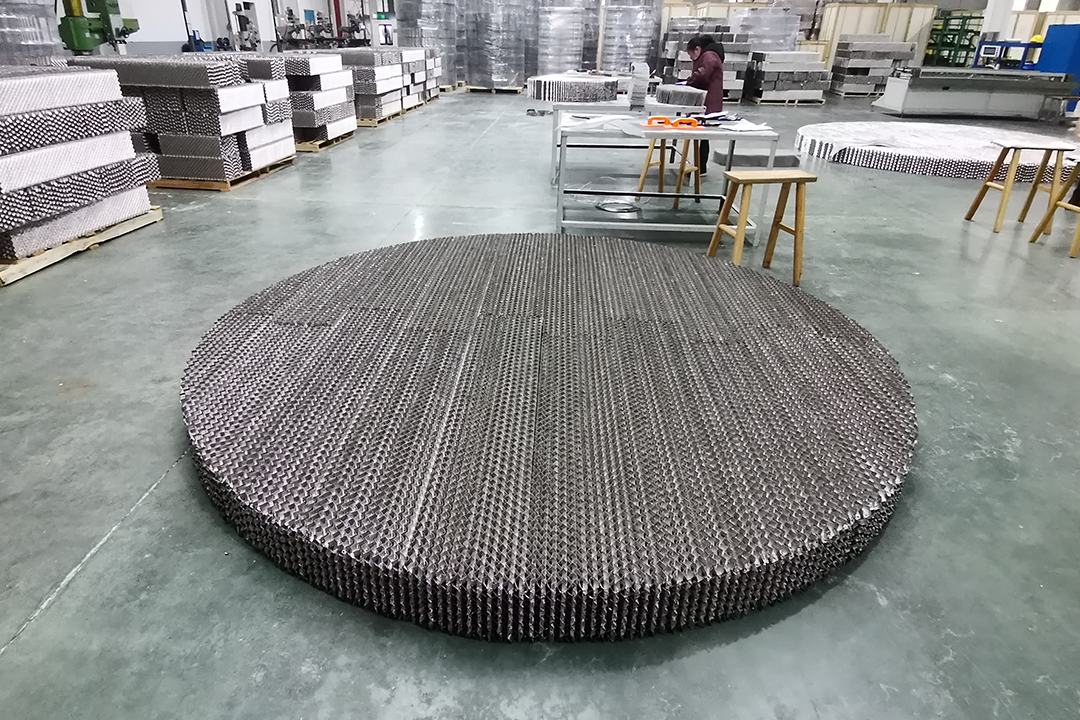

Figure 1: Precision-engineered corrugated sheets of Metal Structured Packing maximizing surface area.

When your separation process demands maximum purity with minimal energy consumption, Metal Structured Packing is the definitive solution. Comprising precisely corrugated metal sheets, this packing creates a geometrically ordered flow path that eliminates channeling and minimizes pressure drop. It is the industry standard for vacuum distillation, CO₂ capture, and complex petrochemical separations.

This guide details how to select the optimal specification and avoid common installation errors to ensure peak column performance.

Performance & Property Comparison

Trap 1: Poor Liquid Distribution

Structured packing is highly sensitive to liquid maldistribution. If the liquid distributor fails to provide uniform flow across the packing surface, efficiency plummets. Never pair high-performance structured packing with a worn-out or poorly designed distributor. Invest in a high-quality pan or spray distributor.

Trap 2: Incorrect Leveling During Installation

Unlike random packing, structured packing must be perfectly level. Even a 1-degree tilt can cause vapor to bypass the packing on the high side. Use a laser level or spirit level during installation to ensure each layer is perfectly horizontal.

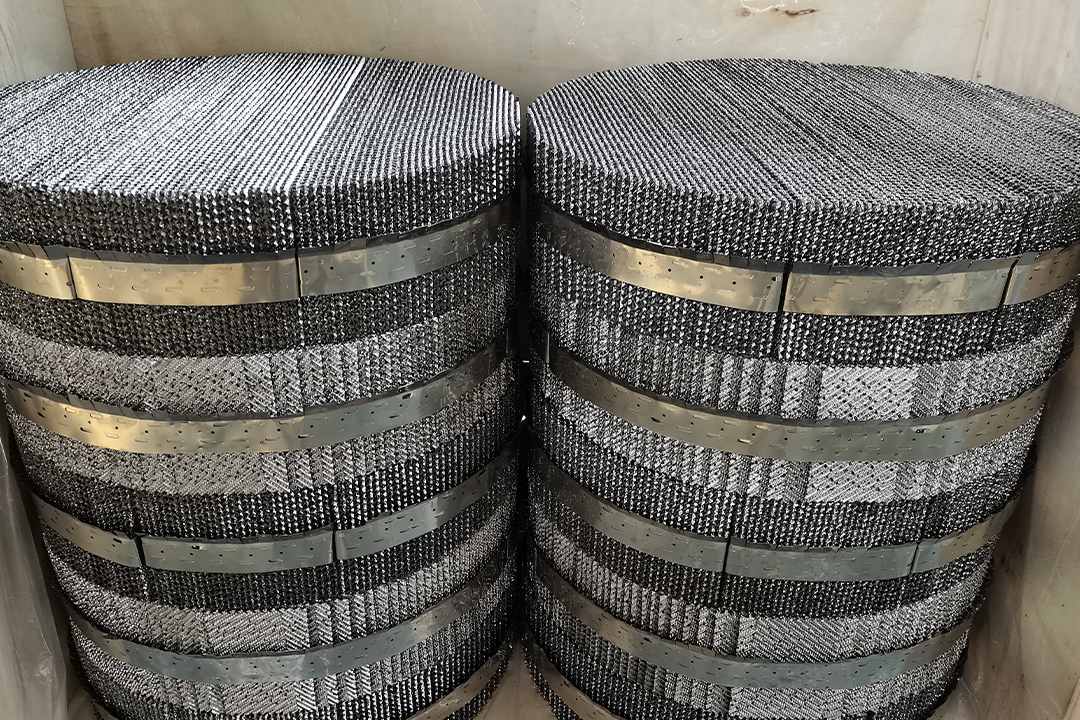

Trap 3: Ignoring Wall Wipers

Vapor tends to channel along the column wall. Without wall wipers, this vapor bypasses the mass transfer zone. Ensure your packing design includes segmented wall wipers that direct the vapor back into the corrugated sheet channels.

1. Model Selection: Choose 250Y for general distillation and absorption (good balance of efficiency and capacity). Choose 500Y for high-purity separations requiring more theoretical stages in a short height.
2. Material Selection: Use 304SS for general service. Upgrade to 316L for acidic environments or 410SS for high-temperature quenching. For extreme corrosion (e.g., H₂S or chlorides), consider Monel or Titanium.

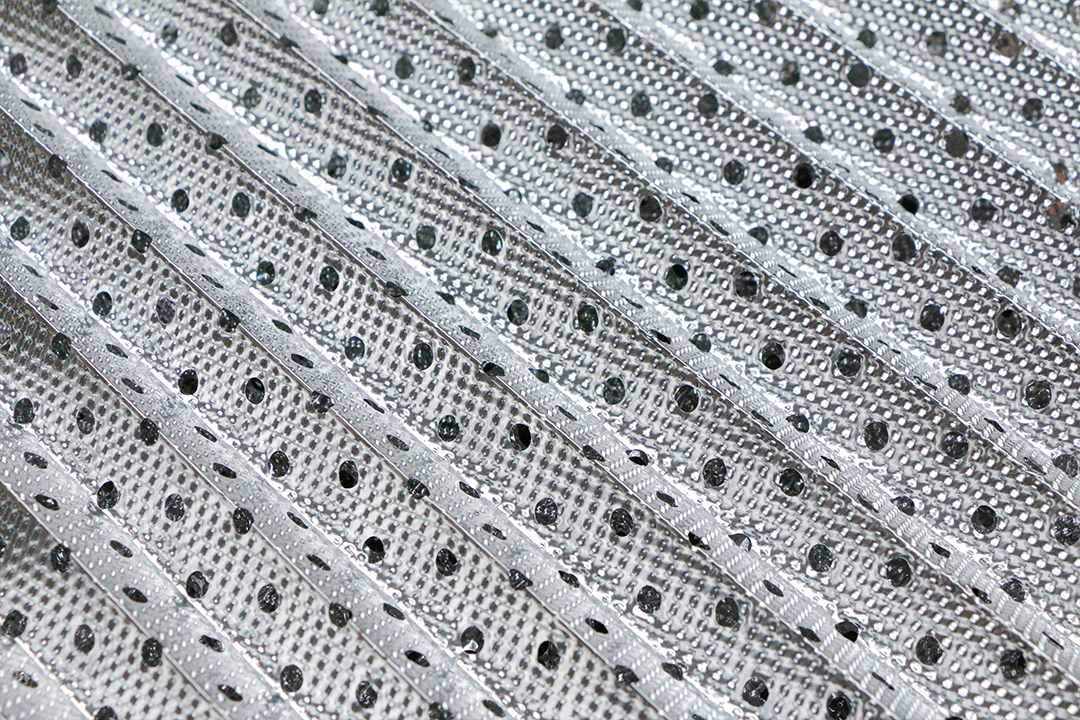

3. Surface Treatment: For low-surface-tension liquids, request perforated or textured sheets to enhance liquid spreading and wetting efficiency.
4. Bed Height Limit: Although structured packing performs well in deep beds, install liquid redistributors every 6 meters of packing height to counteract wall flow effects.

Optimize Your Column with Engineered Structured Packing

FXSINO supplies precision-engineered Metal Structured Packing (250Y, 350Y, 500Y) for global refineries and chemical plants. Contact our engineers for a hydraulic analysis and quotation.
