Metal Random Packing: The Versatile Workhorse for Mass Transfer

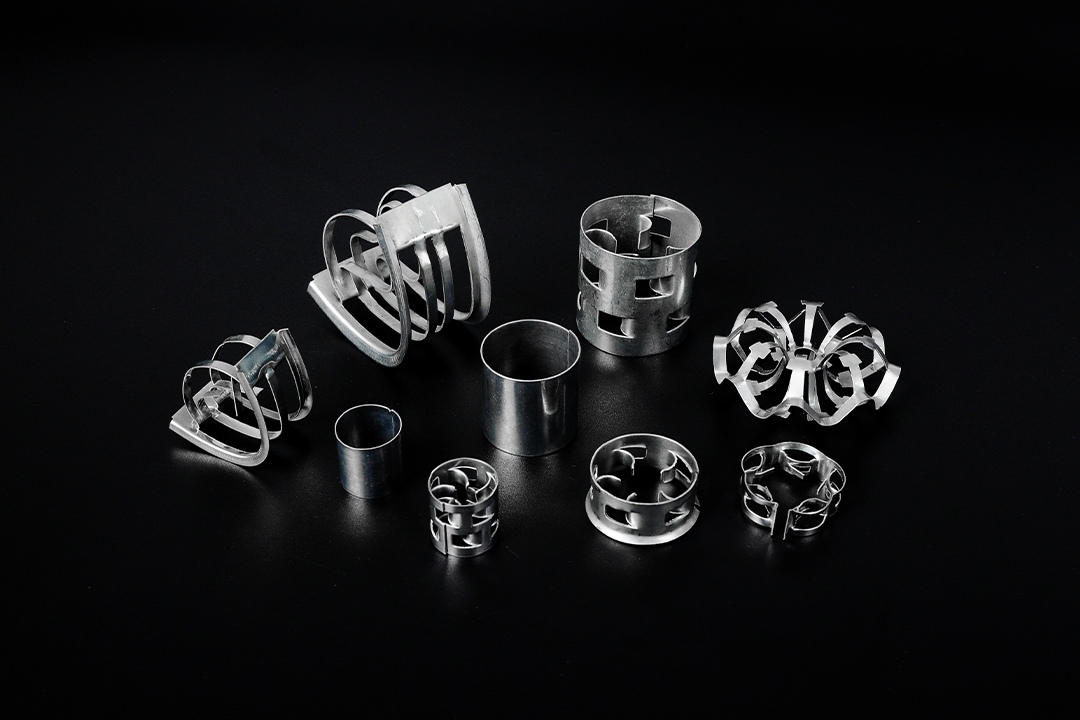

Figure 1: Common types of Metal Random Packing: Pall Ring, Intalox Saddle, and HyPak.

For decades, Metal Random Packing has been the backbone of countless distillation, absorption, and stripping columns. Unlike structured packing, these units are simply "dumped" into the column, creating a complex network of tortuous pathways. This simplicity translates to lower installation costs, excellent mechanical robustness, and tolerance for dirty feed stocks. It remains the preferred choice for atmospheric crude towers, quench systems, and general-purpose scrubbers.

This guide compares the dominant types of metal random packing and outlines the critical factors for successful implementation.

Performance & Property Comparison

Trap 1: The "Dump and Run" Installation

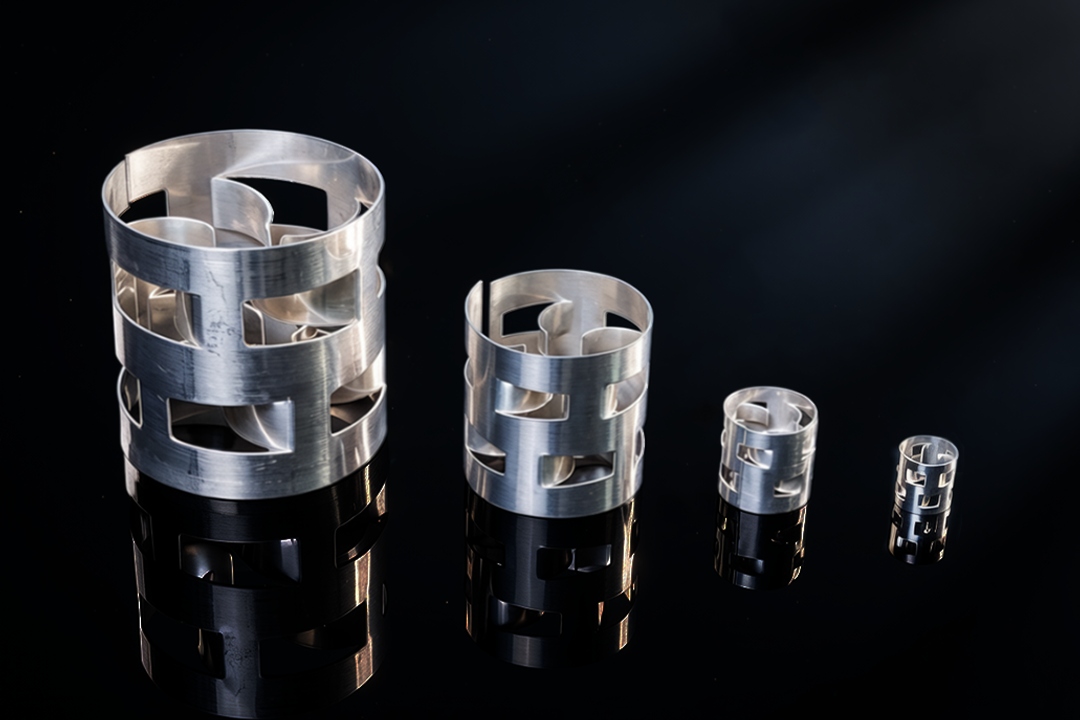

Simply dumping packing from the top of a tall tower causes lighter packing to accumulate near the walls and heavier pieces to fall to the center, creating severe maldistribution. Always use a fabric chute to control the descent and keep the discharge point moving around the column cross-section to ensure a level bed.

Trap 2: Ignoring Support Plate Open Area

Random packing has a high void fraction (typically 93-98%). If the support plate underneath has too little open area (<60%), it becomes the limiting factor for capacity and causes premature flooding. Ensure your support grid matches the hydraulic capacity of the packing.

Trap 3: Material Selection in Cyclic Services

In services involving thermal cycling (e.g., start-ups/shutdowns) with H₂S or chlorides present, 304SS or 316L can suffer from Stress Corrosion Cracking (SCC). For sour gas services or amine treaters, specify 410S Stainless Steel or other SCC-resistant alloys to prevent catastrophic failure.

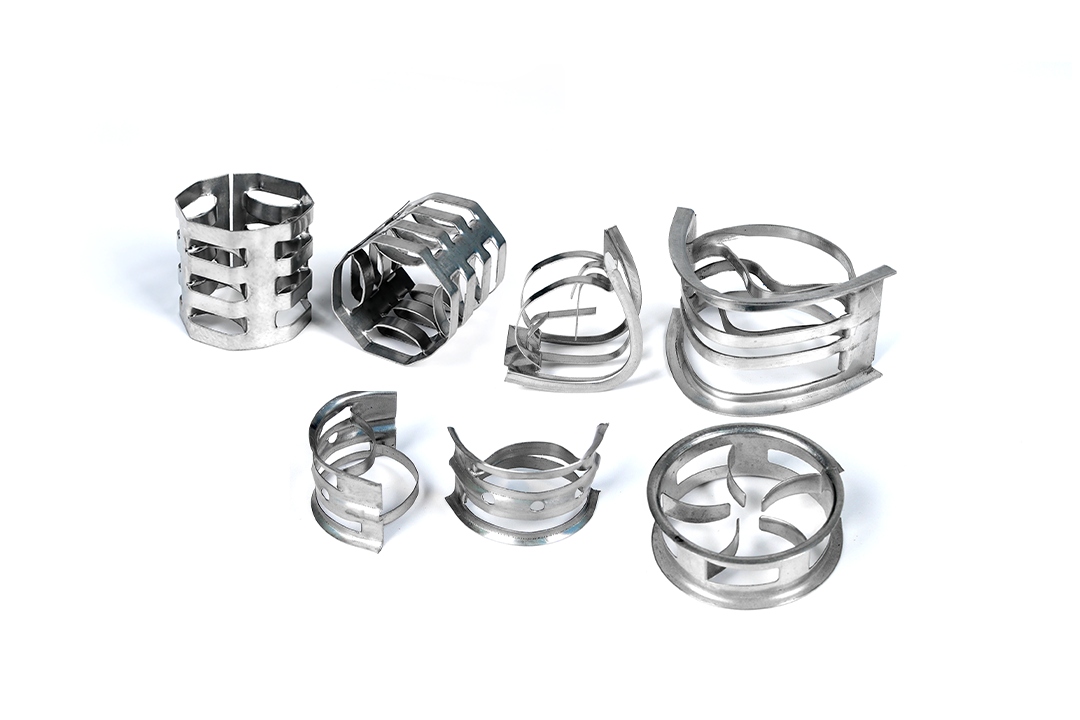

1. Size Selection: #25mm and #38mm are the industry standards for efficiency. #50mm and #90mm are reserved for high-capacity applications or services with suspended solids.

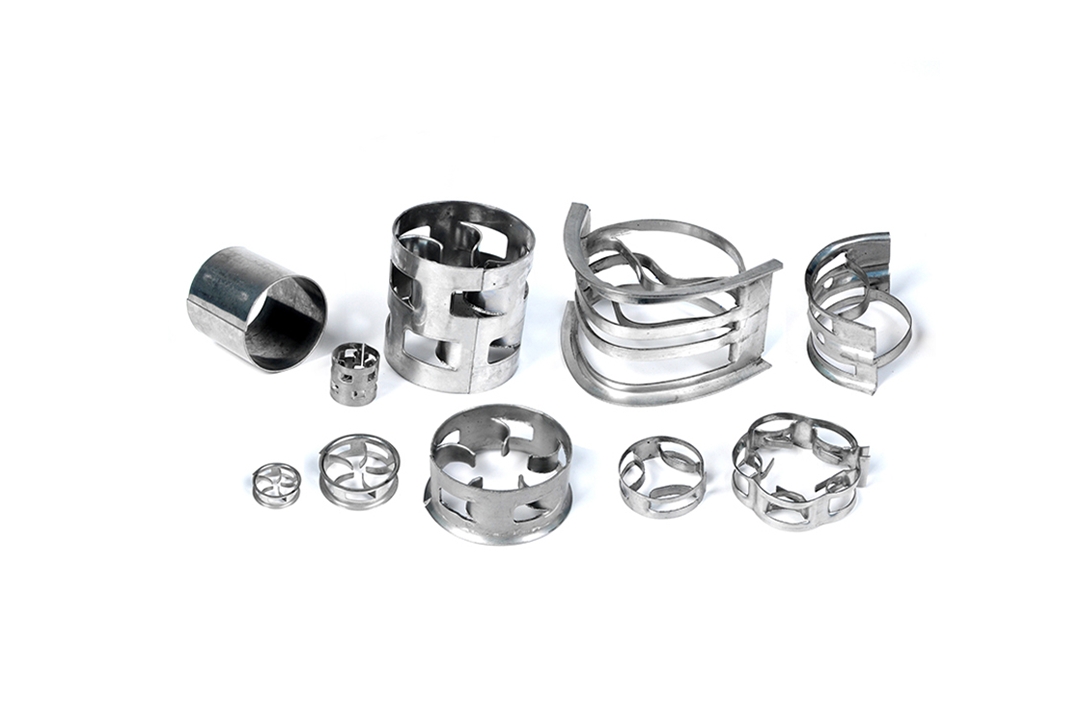

2. Geometry Selection: Use Pall Rings for robustness and ease of installation. Use Intalox Saddles for improved wetting in absorption. Use HyPak when revamping a tower for maximum throughput.
3. Wall Thickness: For corrosive services, thicker gauges (e.g., 0.5mm vs 0.3mm) extend service life. For high-temperature services (>400°C), thicker gauges prevent deformation under load.
4. Redistribution: In towers taller than 6 meters, install liquid redistributors regardless of packing type to counteract wall flow and maintain efficiency.

Source High-Quality Metal Random Packing

FXSINO manufactures a full range of Metal Random Packing including Pall Rings, Intalox Saddles, and HyPak. Contact us for bulk pricing and technical specifications.
